Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M8 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 9479.8 / (kg) 4300
  • Breaking Load: (lb) 25573.6 / (kg) 11600
  • Weight: (lb) 0.562 / (g) 255
  • W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300
  • W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300
  • W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
  • B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600
  • B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600
  • B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

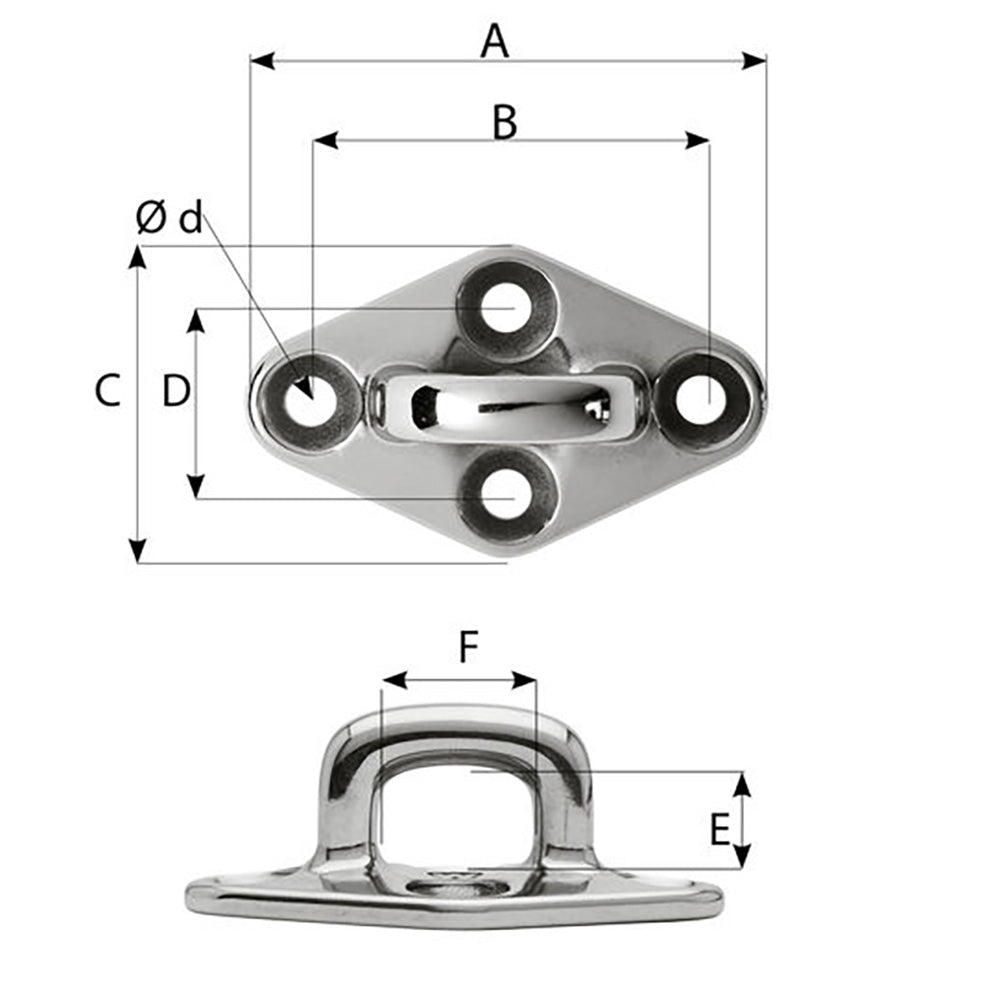

Dimensions:

  • A: (inch) 3 55/64" / (mm) 98
  • B: (inch) 2 7/8" / (mm) 73
  • C: (inch) 2 21/64" / (mm) 59
  • D: (inch) 1 3/8" / (mm) 35
  • E: (inch) 49/64" / (mm) 19.5
  • F: (inch) 1 1/16" / (mm) 27

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
