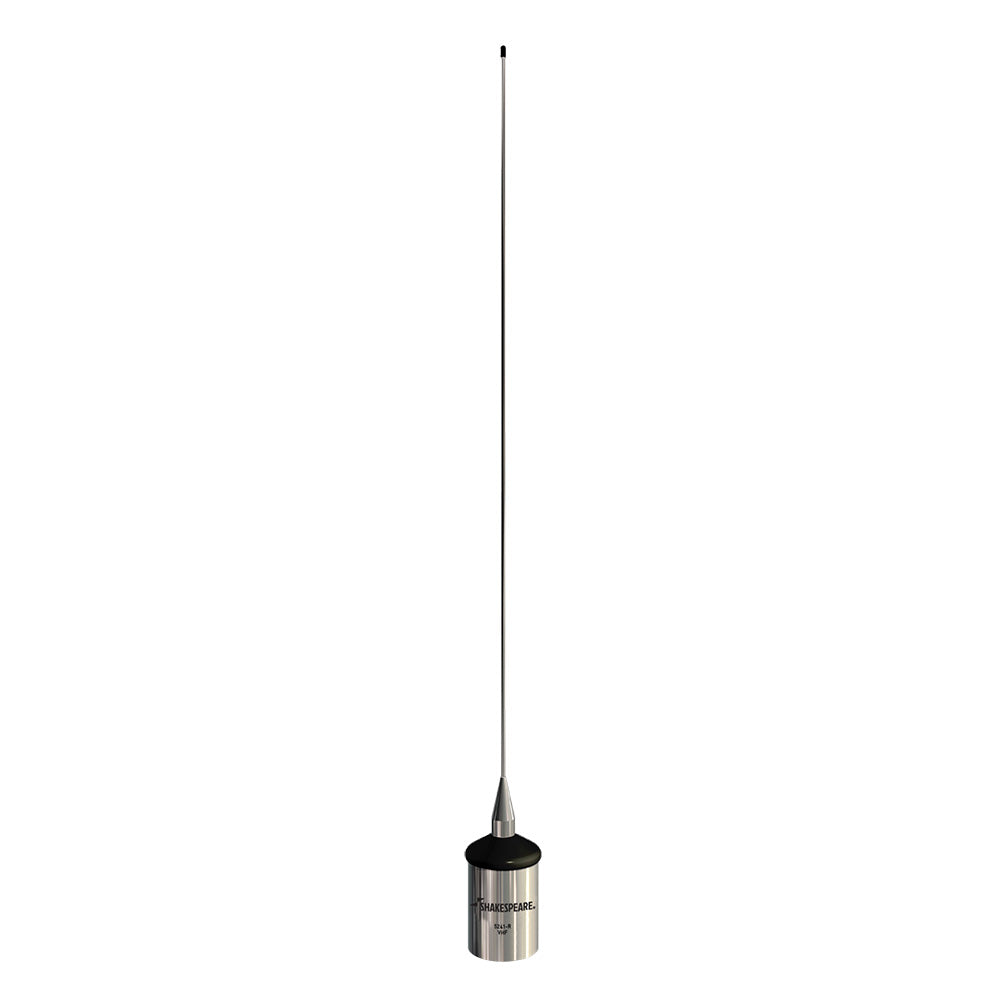

36" LENGTH 3dB
LOW PROFILE END-FED 1/2-WAVE WITH HEAVY-DUTY WHIP

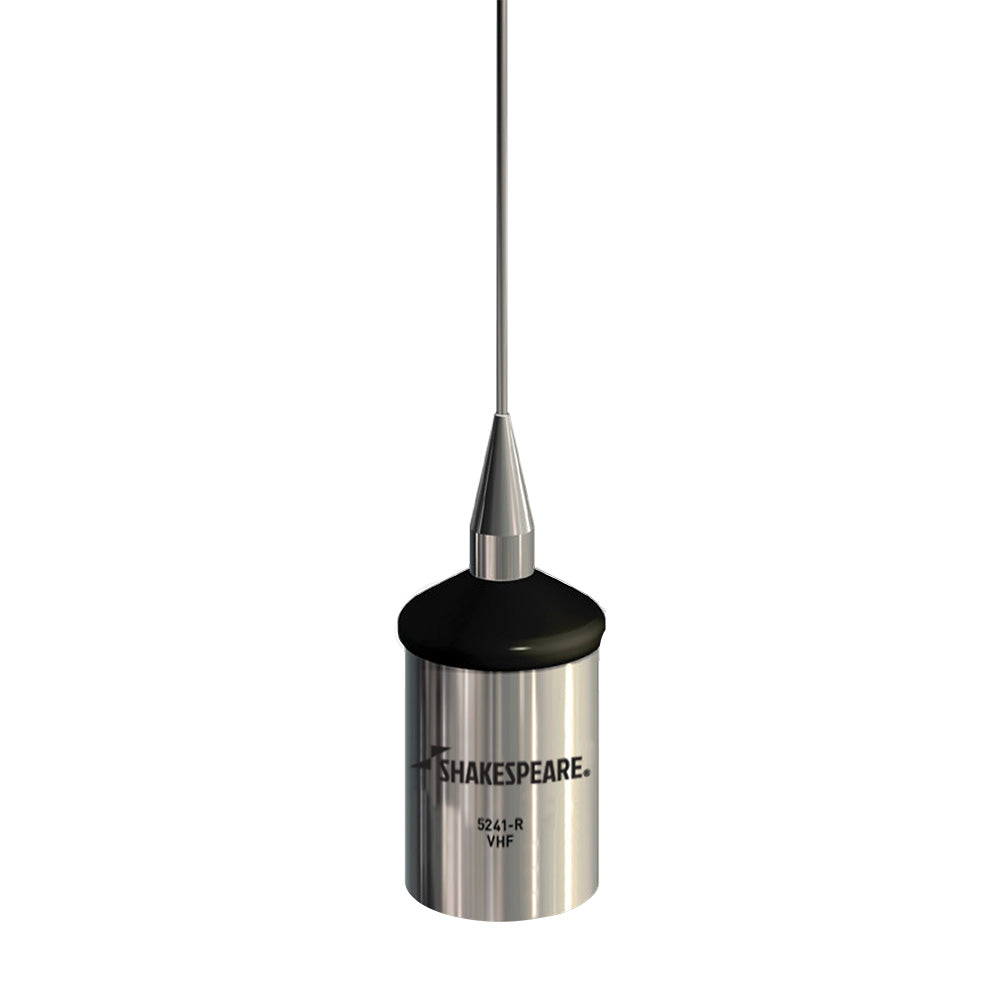

The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important. Comes with a heavy-duty stainless steel whip for extra stability at high speeds. Chrome plated brass canister minimizes de-tuning.
- Sealed, tin-plated copper wire coil
- Requires mount with center hole for passage of the supplied 15' RG-58 cable.
- PL-259 connector included
- Stainless steel whip (36")
- Suggested mount: Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Radiation pattern: | Omni-directional |
| Gain: | 3 dB |
| Max Input (Watts): | 50 watts |
| DC Ground: | YES |
| Height (feet): | 3 |
| Polarization: | Vertical |
Quick Guide (PDF)
