Key Specifications

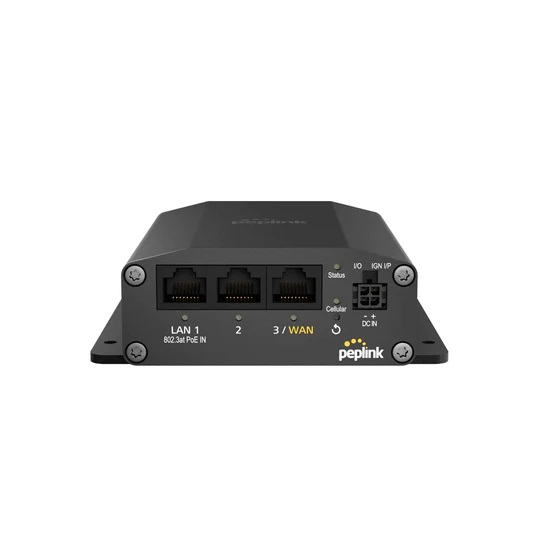

• Model: MAX-BR1-MINI-5GN-T-M-PRM

• Cellular Modem: 5G (Sub-6GHz) with fallback to Cat-20 LTE

• SIM Support: Dual Nano-SIM slots (4FF) and eSIM capability

• Ethernet Ports: 3x Gigabit Ethernet ports (1x WAN, 2x LAN)

• Wi-Fi: Not included in this model

• Power Options: 12V DC input or 802.3at PoE via LAN port

• Power Consumption: 14W nominal, 20W maximum

• Management: Cloud-based InControl2 and local InTouch management

• Operating Temperature: -40° to 65°C

• Certifications: FCC, CE, RoHS

• Additional Features: Rugged metal casing, fanless and ventless design, suitable for industrial and mobile deployments
