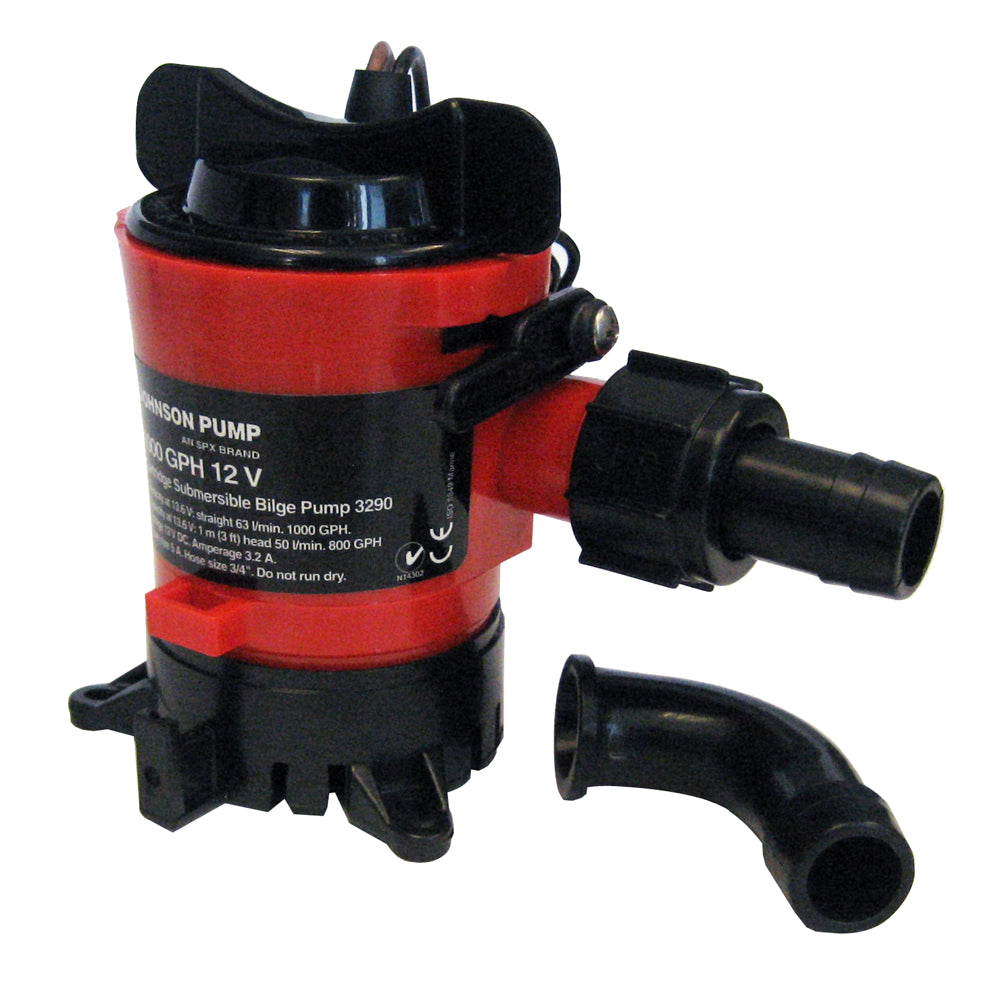

The 1000 GPH incorporates some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties. We have improved the design with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port as well as a removable check valve.
Both the Cartridge and the Ultima Combo pumps may be manually operated via the Johnson Pump bilge control panel.
CE-approved
Features:
- Compact, all-in-one motor/impeller unit
- No tools needed for maintenance
- Extremely energy efficient
- Water-cooled motor for long service intervals
- Meets the international standard, ISO 8849 marine
- Capacity 3 ft (0.9 m) head (13.6 V): 50 l/min - 800 GPH
- Capacity Straight: 63 l/min - 1000 GPH
- Amperage: 3.2 A
- Fuse Size: 5 A
- Connection: 3/4"
- Max Height: 112 mm - 4.4"
- Weight: 0.27 kg - 9.6 oz.
Owner's Manual (PDF)
