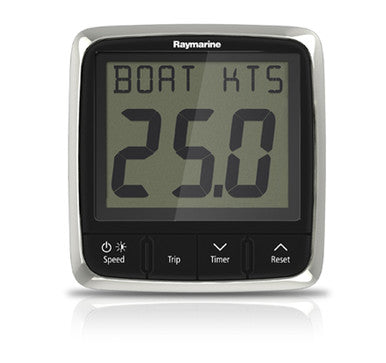

Raymarine I50 Speed Display
Sale price
$496.99 USD
Regular price
$632.99 USDYou saved$136.00 USD OFF
RAYE70058
Adding product to
your cart
Raymarine i50 Instrument Displays Dedicated Speed, Depth and Tridata for power and sail applications! The new i50 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and rigit inflatables. Excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.
Key Features - Large numerals and digits
- Red backlighting for improved visibility
- SeaTalk and SeaTalkng interfaces
- NMEA2000 (compatible) interface
- Built-in transducer interface
- 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
- Large controls for ease of use at sea
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation
| Get the complete new look! Looks great with i60 Sailors will love the new i60 Wind and i60 Close Hauled Wind displays. They look great mounted with the i50 displays. Looks great with new cSeries and new eSeries MFDs The new i50 instruments compliment the new c and e Series MFDs to give you a great looking dash.
| | Raymarine i50 Instrument Displays
Raymarine i50 Speed Instrument Display - Speed through water
- Speed over ground (GPS required)
- Sea surface temperature
- Trip and Log data
|
Raymarine i50 Depth Instrument Display - Easy-view large digits plus depth trend indicator.
- Min/max depth.
- Audible shallow, anchor and deep water alarms.
|
Raymarine i50 Tridata Instrument Display - Combines depth and speed data in an easy-to-read 3-line display.
- Dedicated depth and speed displays with trip/log, sea temperature and SOG.
| |
| Models: | i50 Speed
| i50 Depth
| i50 Tridata
|
| E70058
| E70059
| E70060
|
| |
| Nominal Voltage
| 12V DC |
| Operating Voltage Range
| 10 - 16V DC |
| Power Consumption
| typically <1W (display only) and 200mA maximum with transducer connected |
| Current Consumption
| 45 to 65mA (display only) and 200mA maximum with transducer connected |
| Operating Temperature range
| -20°C to +55°C |
| Storage Temperature
| -30°C to +70°C |
| Relative Humidity
| up to 93% |
| Waterproofing standard
| IPX6 |
| Connections
| 2 x SeaTalkng and transducers |
| Conformance
| Europe 2004/108/EC |
Product Condition: New
Year of Release:
UPC: 723193730386
Width: 4
Height: 10
Depth: 7
MPN:
E70058
