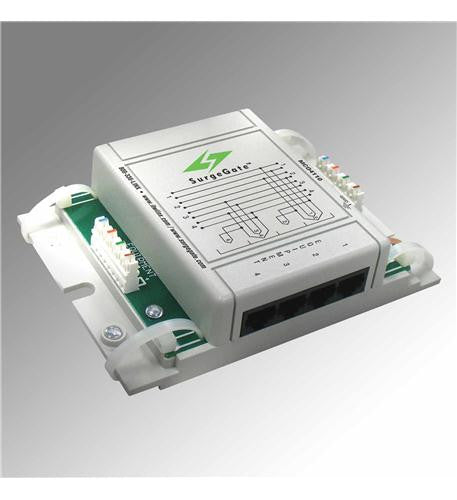

`- Analog Station Set and Central Office Line Protector
- Protects up to 8-wires (4-pairs) using 110 punchdown block on the input and 110 punchdown block or 4 RJ11 or 2 RJ45 on output.
- Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
- Expandable modular system
- Applications: Analog and Central Office lines for PBX or KSU
- Agency Approval: UL 497A (Secondary)
- Grounding Requirements: Uses Electrical AC Ground
- Recommended Grounding Impedance: - Signal Perfect Circuitry
- Auto-Resetting PTCs: 160 mA (8-10 Ohms)
- Clamping Level: 260V
- Response Time: 1-5 Nanoseconds
- Capacitance: - Suppression Modes: Metallic and Longitudinal
- Wires Protected: 50-wires (25-pairs)
- Termination Type: 110 punchdown input, RJ11/RJ45 or 110 punchdown output
