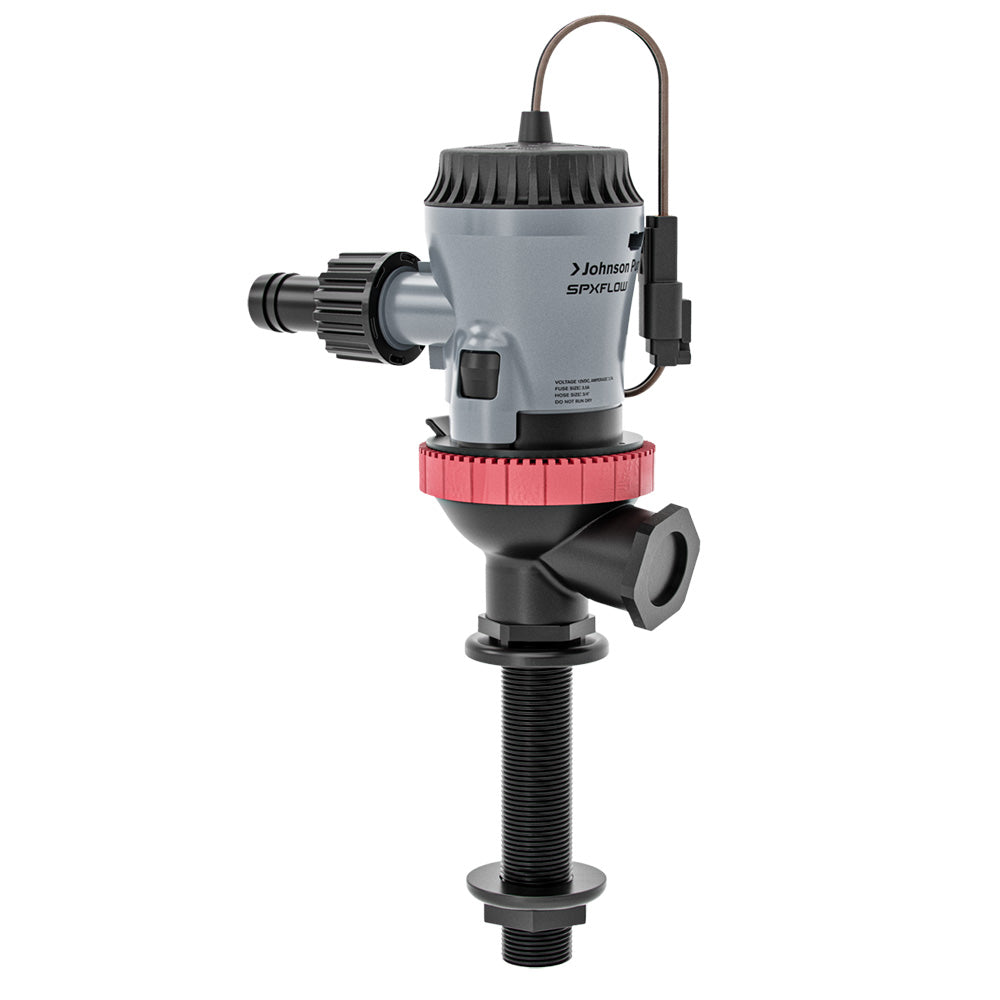

Aqua O2 Flex Mount 500 GPH Aerator Pump - 12V
Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.
Features:
- All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
- Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
- High-flow impeller design
- Quick-change motor connection
- 360-degree pump discharge rotation
- Switchless automatic bilge pump with low-amp resistance monitoring
- Durable thermoplastic housing design commonality with removable motor cartridge
- Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
- Upgradable motor cartridge
- Dual-port inlet
Benefits:
- Heightened efficiency and an increased flow rate
- Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
- Reorient discharge in any direction
- The common body allows interchangeable motor cartridge replacement in the same or different size
- Corrosion-resistant and extended life
- Allows single transom intake for dual intake pump application
- Can increase or decrease capacity according to the environment and flow needed
- Choose the correct intake for the application
Competitive Advantages:
- The most efficient and highest flow in the GPH capacity category
- Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
- Unmatched versatility for ease of installation
Specifications:
- Pump Size: 500 GPH
- Capacity Straight (12V): 585 GPH (37 I/min)
- Voltage: 12V
- Amp: 2.7A
- Fuse: 3.5A
- Hose Connection: 3/4 in.
- Wire Size: 16 GA, TINNED
- Weight: 9.6 oz
- Body: ABS
- Dura Port: PA66/GF - Nylon
- Shaft: 316 Stainless Steel
- Shaft Seal: Nitrile Rubber
- Motor Cartridge: PC-ABS
Specifications:
- Gallons Per Hour: 500 GPH
- Inlet Style: Straight and Elbow
- Volts: 12v
- Box Dimensions: 4"H x 5"W x 10"L WT: 1.4 lbs
- UPC: 7330717017743
Quick Guide (pdf)
