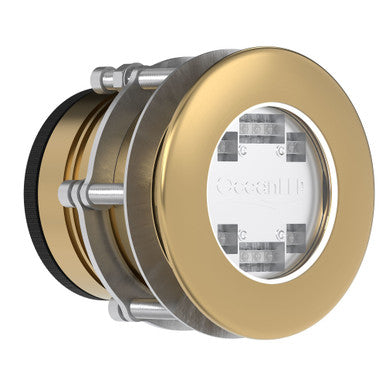

OceanLED Explore E3 XFM
Model: E3009BW- New generation innovative, efficient reflector optic.
- 20? side beam produces a blade of light under the water that penetrates further.
- A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.
- Reduced installation time.
- Fish strobe mode.
- Same light output as Sport Series.
- Up to 5,000 Fixture Lumens*
- Rectangular Beam
- Compact design and built in driver.
- Simple toggle control.
- Ultra low profile outer bezel.
The Explore E3 has the most advanced optics available on the market.
The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.
All aspects of the design including the clamping kit make installation quicker and simpler.
The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.
Specifications| Lumens (Dual Colour) | 5,600 |
| Fixture Lumens (Dual Colour) | 3,500* |
| Min-Max Operating voltage DC | 9-32V DC |
| Current / Amp draw Dual Colour (12V DC / 24V DC) | 3.6A / 1.7A |
| Min-Max Operating voltage AC (Optional) | 100V - 240V AC |
| Current / Amp draw Dual Colour (110V AC / 230V AC) | 430mA / 210mA |
| Driver type | Internal |
| Total weight | 1.2kg (2.65lbs) |
| Total Diameter (Including Flange) | 105mm (4.13") |
| Diameter Of Body | 80mm (3.15") |
| Profile Of Fixture | 4mm (0.16") |
| Length | 97mm (3..8") |
| Minimum Space Required Inside The Hull | 170mm (6.55") |
| Hole Cut-Out | 83mm (3.25") |
| Material (Mounting Tube) | AB2 Aluminium Bronze |
| Material (Light Body) | Aluminium |
| Boat size | 0-10m |
| Transom / Hull spacing | 0.5-1.2m (2-4’) |
| Installation depth below waterline | 25-30cm (10-12") |
