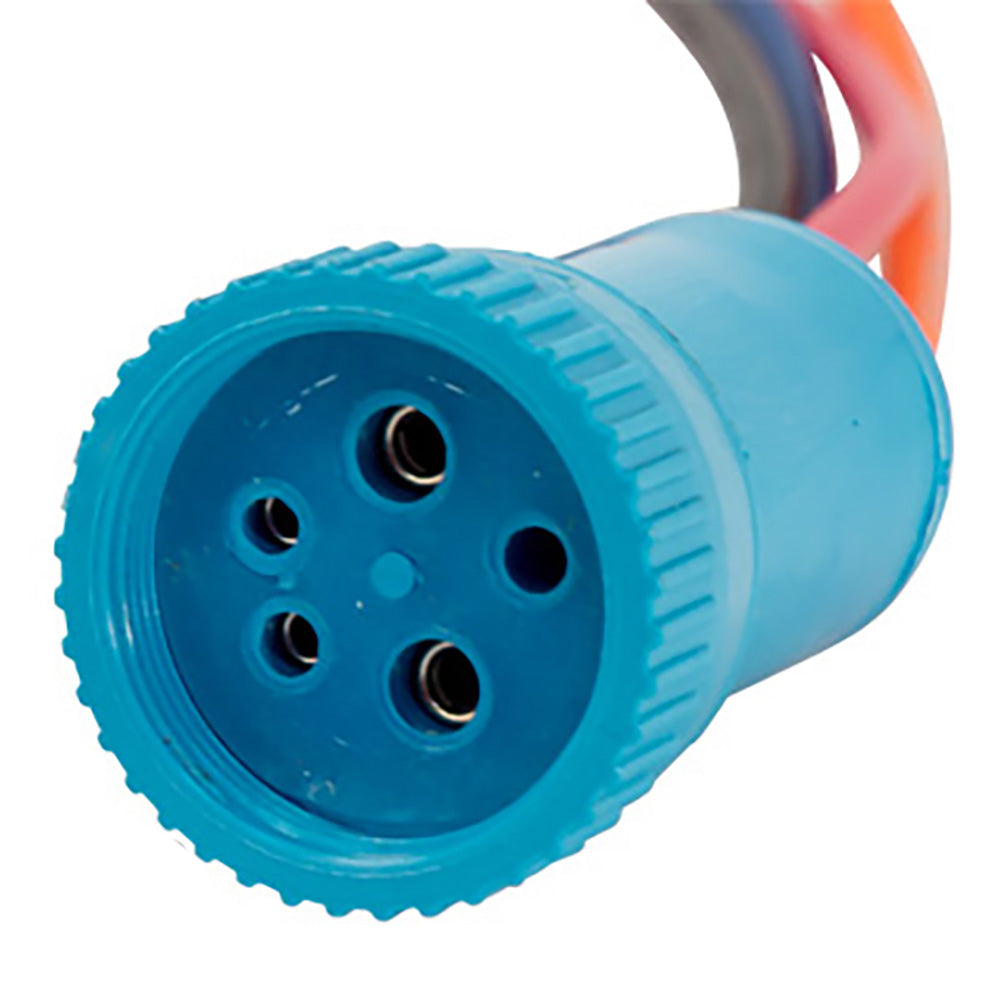

22mm Electronic Deutsch Connector with 4-Wire Pigtail

The proprietary Deutsch style connectors are designed for fast, clean, and reliable switch installations in the most demanding environments. Whether you are working with 19mm or 22mm switches, these connectors offer a secure, IP69k-rated, sealed connection that protects against dust, water, and corrosion. They will continue to perform even when fully submerged.

Color-coded wiring makes it easy to identify input, output, ground, and LED leads, reducing setup time and wiring errors. When it is time to replace a switch, there is no need to untangle your entire panel. Pop the connector off and install a new switch.

Purpose-built for marine, automotive, and industrial applications, these one-of-a-kind, patented connectors provide rugged reliability, simplified service, and clean cable management - all backed by their tough IP69K waterproof rating, which withstands the harshest conditions.

Specifications:

• Available in 19mm or 22mm
• Uses 3 DT-style female terminals and 2 DTP-style female terminals.
• IP69K Waterproof Rating
