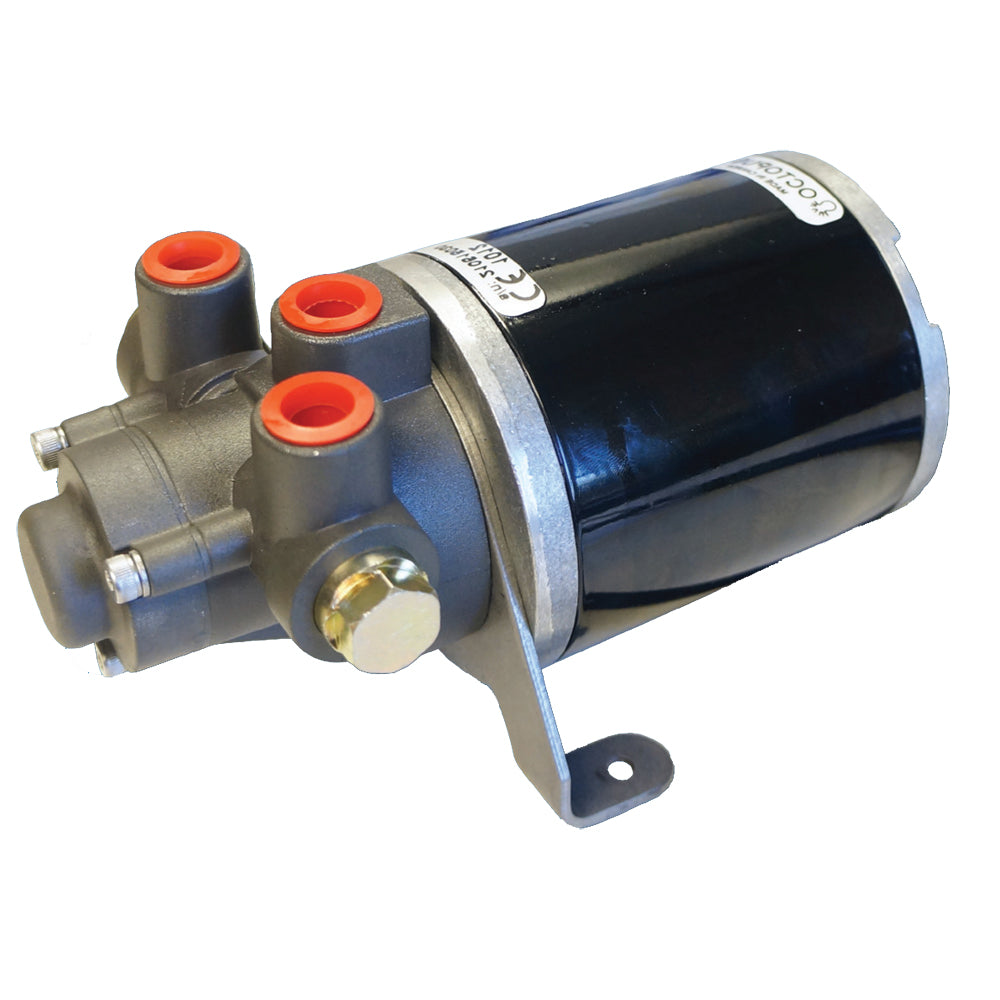

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.
Features:
- Industry leading efficiency - lower power consumption, particularly
under demanding conditions requiring higher flow rates equates to a major
advantage over competing units.
- Cost saving - the increased efficiency and performance means the pumps
can be used with smaller autopilot course computers than equivalent drive
units.
- The smaller footprint of the compact gear pump increases installation
flexibility.
- Lower noise and vibration make the gear pump particularly suitable for
sailboat installations.
- Suitable for balanced or unbalanced cylinders.
- All models available for both 12v and 24v systems.
Specifications:
- Flow Rate: 1600CC/min
- Voltage: 12 Volt
- Cylinder Range: 16-24ci CYLINDER
- Average Current Draw: 6.6A
- Operating Temperature: -15 to +75'C (5 - 167'F)
- Waterproofing: IP55
- Ignition Protection: ISO 8846 & SAEJ1171
- EMC Compliance: EN60945-9-2002
Quick Guide (PDF)
