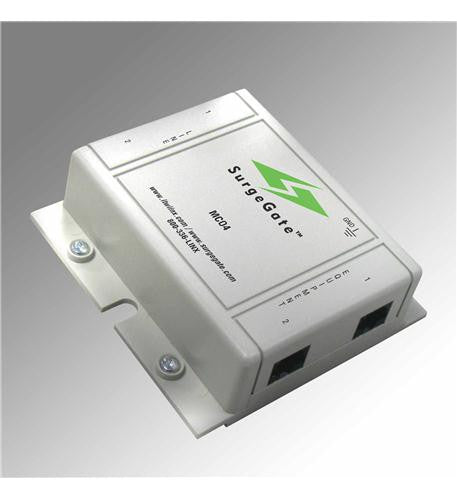

`- Analog Station Set and Central Office Line Protector
- Protects up to 4-wires (2-pairs) per jack. Using RJ11/45 connectors (2in/2out, pins 3, 6, 4, 5 protected)
- Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
- Expandable modular system
- Applications: Analog and Central Office lines for PBX or KSU
Agency Approval: UL 497A (Secondary)
- Grounding Requirements: Uses Electrical AC Ground
- Recommended Grounding Impedance: - Signal Perfect Circuitry
- Auto-Resetting PTCs: 160 mA (8-10 Ohms)
- Clamping Level: 260V
- Response Time: 1-5 Nanoseconds
- Capacitance: - Suppression Modes: Metallic and Longitudinal
- Wires Protected: 4-wires (2-pairs) per jack (pins 3, 6, 4, 5)
- Termination Type: RJ11/45
