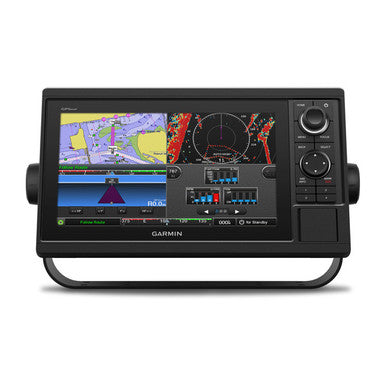

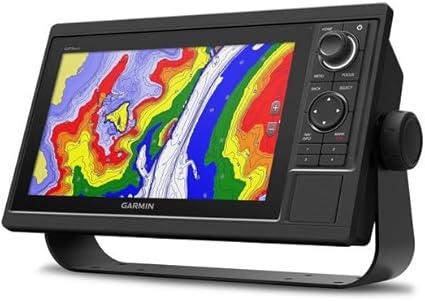

Garmin GPSMAP® 1022 10-inch Chartplotter Is All-in-1 Solution

Model: 010-01740-00
UPC: 753759168308
  • 10-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
  • Supports optional BlueChart® g3 Vision® premium charts

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

Specifications
Performance and Physical
Dimensions 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm)
Display size 8.8" x 4.9" (224 x 125 cm)
Display resolution 1024 x 600
Display type WSVGA display
Weight 4.1lbs
Water rating IPX7
Power consumption Max power usage at 10 Vdc: 32.4 W
Antenna Internal or external over NMEA 2000
Mounting options Bail or flush
Receiver 10 Hz high-sensitivity
Garmin Marine Network™ ports 2
Preloaded maps None
Accepts data cards 2 SD™ cards
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks
Tide tables Yes
Garmin Radar compatible Yes
Garmin Sonar compatible Yes (with external black box, sold separately)
Garmin SmartMode compatible (customizable monitor presets) Yes
Supports AIS (tracks target ships position) Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
Garmin Meteor™ Audio System compatible Yes
Supports FUSION-Link™ compatible radios Yes
GSD™ Black Box sonar support Yes
GCV™ Black Box sonar support Yes
ActiveCaptain compatible Yes
Garmin Helm compatible Yes
GRID™ (Garmin Remote Input Device) compatible Yes
Wireless remote compatible Yes
CHIRP sonar technology Yes (with external black box, sold separately)
ClearVü Yes (with external black box, sold separately)
SideVü Yes (with external black box, sold separately)
NMEA 2000® compatible Yes
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports 1 BNC
Video output ports None
Wireless connectivity Yes

What's in the Box:
  • GPSMAP 1022 chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
Details

Product Condition: New

Year of Release:

UPC: 753759168308

Width: 15

Height: 15

Depth: 15

Garmin GPSMAP1022 10" Plotter Worldwide Basemap
