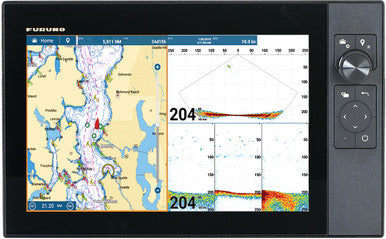

Furuno TZT12F 12" TZtouch3 Chart Plotter/Fish Finder
Model: TZT12F- Go on a power trip with the most powerful MFD series available
- EASY to use; because finding your happy place shouldn't be difficult!
- The return of Hybrid Control
- Protect your livelihood with new PIN CODE security
- Never lose waypoints, routes or settings again with TZ Cloud
- We gave you something to CHIRP about!
| Display | |
| Type | Color TFT multi touch In-Plane Switching (IPS) LCD |
| Screen Size | 12.1" Wide |
| Screen Resolution | WXGA 1280 x 800 |
| Screen Brightnes | 900 cd/m2 (typical) |
| Display Colors | 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) |
| Language | Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish GPS/WAAS |
| GPS/WAAS | |
| Receiver Type | GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS |
| Receiving Frequency | L1 (1575.42 MHz) |
| Time to First Fix | 100 s (cold start) |
| Accuracy | 10 m (GPS), 7 m (MSAS), 3 m (WAAS) |
| Position Update Interval | 0.1 s (10Hz) |
| CHART PLOTTER | |
| Cartography | MapMedia mm3d chart (C-MAP/Navionics/NOAA) |
| Memory Capacity | 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route) |
| Alarms | Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required) |
| Radar | |
| Display Modes | Head-up*, North-up *Heading input required. |
| Echo Trail | Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous |
| Target Tracking | 30 ARPA Targets |
| Radar Alarms | Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line |
| FISH FINDER | |
| Transmit Frequency | CW: 50/200kHz CHIRP: 40kHz to 225kHz |
| Transducer | 300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers |
| Display Range | 2 to 1,200 m, shift: 0 to 1,200 m |
| Extension Mode | ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM |
| Picture Advance | 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop |
| Fish Finder Alarms (option) | School of fish, School of fish for bottom lock |
| INTERFACE | |
| CAN bus/NMEA2000 | 1 Port |
| NMEA0183 | 1 Serial Output Port |
| LAN | 2 Ports (100 BASE-TX) |
| USB | 1 Port (USB2.0) for touch monitor and control unit: |
| Video I/O | Input: 2 Ports (NTSC/PAL) Output: 1 Port (HDMI 720p) |
| AUX I/O | 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output |
| SD Card Slot | 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option) |
| Wireless LAN | IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max |
| Transducer | 1 Port, 1 Port — DI-FFAMP |
| ENVIRONMENT | |
| ENVIRONMENT | -15°C to +55°C |
| Relative Humidity | 93% or less at +40° C |
| Waterproofing | IP56 |
| POWER | |
| Voltage | 12-24 VDC |
| Current draw | 2.3 - 1.2 A |
What's in the Box:
- Multi Function Display 12.1"
- Grey Silicone Cover
- Power Cable Assy 2m
- 12 to 10pin Transducer adapter cable
- LCD Cleaning Cloth
- Flush Mount Fixture x 2
- Flush Mount Sponge 12H x 2
- Flush Mount Sponge 12V x 2
- Slotted Head Hex Bolt M6x12 x 2
- EMI Core GRFC-10
- Connector Caps
- Flush Mounting Template
- Operator'sGuide
- Installation Manual
