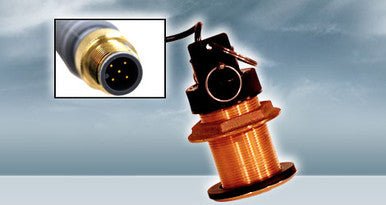

Designed with Airmar?s exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4?) of water and can reach depths up to 180 m (600?)..
Standard Features:
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides 0.2°C ( 0.1°F) accuracy
- Weight: 1.5 kg (3.4 lb)
- Acoustic Window: Urethane
- Data Update Rate: 1 per second
- Minimum Sounding Depth: 0.5 m (1.6?)
- Maximum Sounding Depth: 180 m (590?)
- Pressure Rating: 3 m (10?)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)?*p/nm = pulses per nautical mile
- Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
- Supply Current: 40 mA
- Standard Cable Length: 2 m (6.5?)
- NMEA 2000® Load Equivalency Number (LEN): 4
