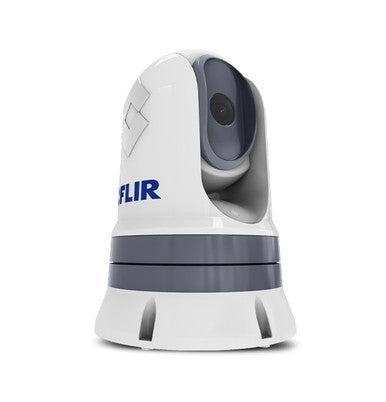

FLIR M332 Single Payload
Thermal Camera No JCU 640 x 480 24D HFoV
Model: M332Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.
Thermal imaging offers vision in complete darkness, glare, and light fog.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Exceptional connectivity with navigation and security systems.
Specifications| General | |
| Detector Type | 320 x 256 VOx Microbolometer |
| Field of View | 24° x 18° |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Single H.264 Network Video Stream |
| Pan & Tilt Adjustment Range | 360° Continuous Pan, ± 90° Tilt |
| Pan/Tilt | Yes |
| Connections & Communications | |
| Analog Video Output | NTSC/PAL User Settable |
| Analog Video Connector Types | BNC |
| Environmental | |
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Standard |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Salt Mist | IEC60945 |
| Shock | 15g vertical, 9g horizontal |
| Storage Temperature Range | -30°F to +158°F (-30°C to +70°C) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
| Marine Imaging & Optical | |
| Focus | Fixed 12ft (3m) to infinity |
| Thermal Imaging | |
| Continuous E-Zoom | 8x |
| Focal Length - Thermal | 9.1mm |
| Video Refresh Rate - Thermal | 30 Hz |
What's in the Box:
- M332 Camera
- Camera base-seal
- Camera gasket
- RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
- Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
- Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
- Right-angled 3-pin power cable 3 m (9.8 ft.)
- Mounting riser
- 9. 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs
